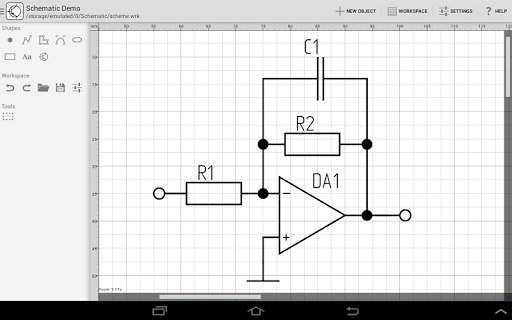

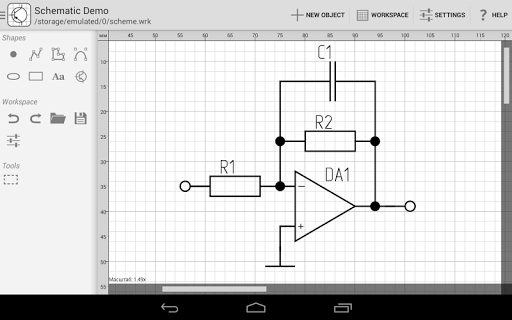

Schematic Demo is an easy-to-handle and comfortable CAD-software, developed for different kinds of diagrams.
NOTE: please don't use hardware acceleration to prevent incorrect drawing.
You can create and edit such graphic objects as:
- Point
- Line
- Polyline (polygone)
- Bezier curve
- Arc
- Ellipse
- Rectangle
Editing objects performed by interaction with a device touch screen.
How to use:
- Single touch - adds an object or vertex / select the object
- Double-tap - unselects the object

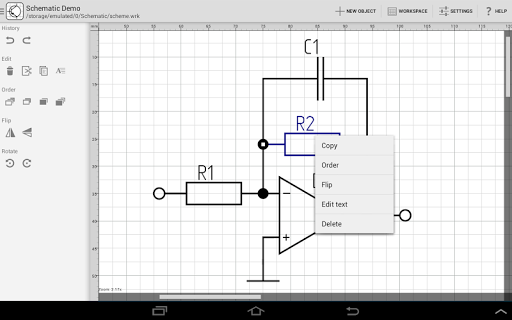

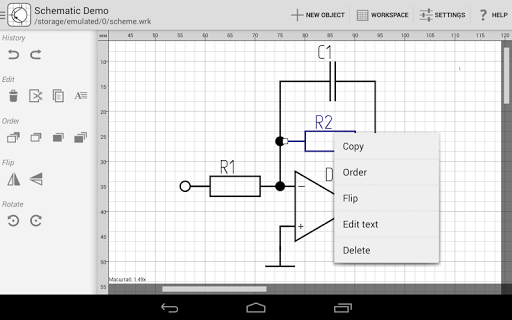

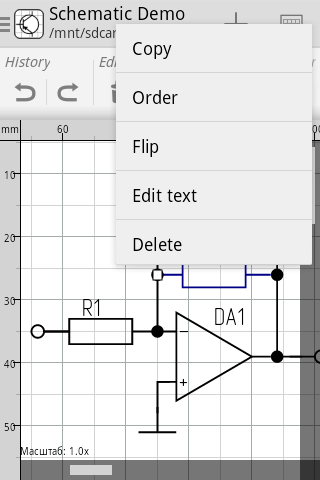

- Long press - show context menu of a selected object
- Pinch in / pinch out - scales the workspace
